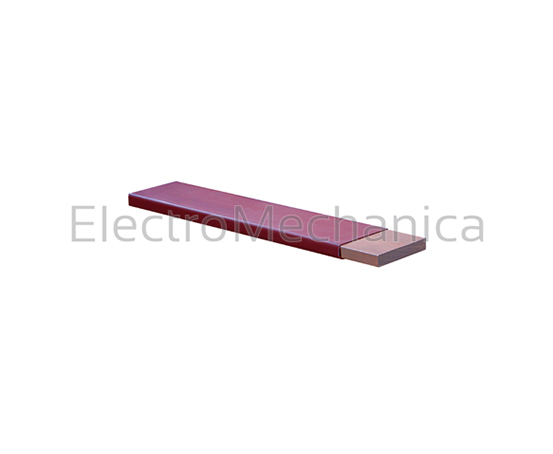

CYG-BT-1KV heat-shrinkable busbar insulation protection (medium wall) Track resistant polyolefin heat-shrinkable bus bar tubing used to protect and insulate rectangular, square or round bus bars – halogen free, low smoke. Busbar tubing calculation: add four sides and divide by 3.4+10% General features: Shrink ratio: 2.5:1 Material: Polyolefin Shrink temperature: 110°C Tensile strength: 10.4MPa Elongation at break: 500% Dielectric strength: 25kV/mm Operating temperature: -55°C – 125°C DESCRIPTION Heat shrink tubing COLOUR Black INSIDE DIAMETER 80 SHRINK RATIO 2.5:1 AFTER RECOVERY – DIAMETER 28 AFTER RECOVERY – WALL THICKNESS 1.20 mm ROLL LENGTH (METERS) 20 m
JDDBT080-0
