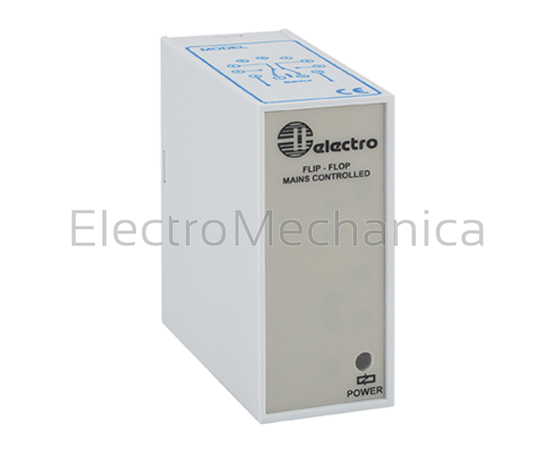

Flip Flop Relay The Electro 11 pin plug-in range of control and timing devices are to be installed into a standard 11 pin base making installation easy and convenient. Flip – flop relays to control many applications such as spreading work load and controlling conveyor direction. Main controlled flip – flop with memory has to be energized for at least 30 seconds before the supply is removed. A delay of at least 10 seconds has to be complied to ensure proper functioning. Features Output 10A SPDT Power supply ON LED Pulse controlled flip – flop with memory DESCRIPTION Pulse controlled without memory CONTACT 8A SPDT RATED VOLTAGE 250V MECHANICAL LIFE 10×106 cycles PROTECTION INDEX IP IP 20 OPERATING TEMPERATURE -10 to + 50°C STORAGE TEMPERATURE -50 to + 85°C DIMENSIONS (MM) (H) 92 x (W) 36 x (D) 64
F12230A
