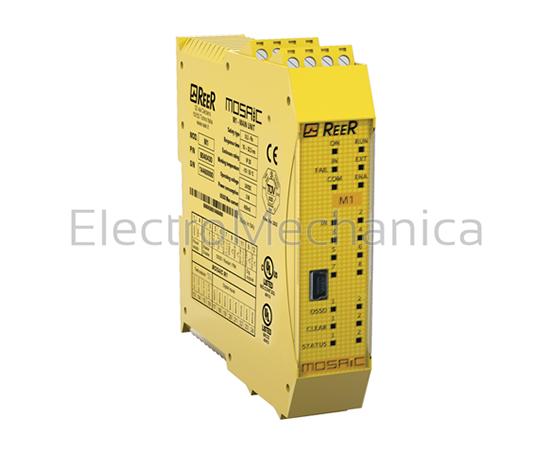

Mosaic safety controller for EOS2/4 safety light curtains Mosaic is a modular, configurable safety controller for protecting machines or plants. It is capable of monitoring several safety sensors and commands, such as safety light curtains, laser scanners, photocells, mechanical switches, mats, emergency stops, two-hand controls, concentrating management of these in a single, flexible device. SERIES DESCRIPTION main unit, also usable as a stand-alone device, able to control any other expansion units OPERATING TEMPERATURE -10 … 55 °C STORAGE TEMPERATURE – 20 … 85 °C SAFETY LEVEL Safety level: SIL 3 – SILCL 3 – PL e – Cat. 4 MOUNTING DIN rail mounting DIMENSIONS (MM) (H) 99 x (W) 22.5 x (D) 114 mm
MAIN UNIT
