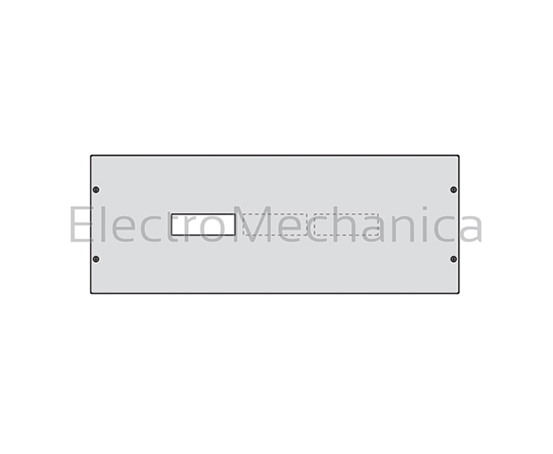

Quadro+ floor standing distribution board system Quadro + enclosure systems are supplied in a flat-pack format for ease of transportation and on-site assembly. Cabinets can be joined horizontally to form complete multi-cabinet systems without limitations. Ideal for applications up to 4000A. Basic component requirement to assemble a single floor standing cabinet: Top and bottom frames four uprights plinth side panels back panel top and bottom plates door Equipment mounting kits (for Quadro 5 and Quadro+ systems) Comprises: mounting accessories and front covers for MCBs, MCCBs and ACBs For 900 mm wide panels – Vertical mounting (terminals top and bottom) table SERIES Quadro + series INDEX PROTECTION IP IP55 (with door) DESCRIPTION Kit for mounting mccbs ORIENTATION Vertical FOR COMPONENTS 800/1000A DIMENSIONS (MM) (H) 600 x (W) 800
UC051H
