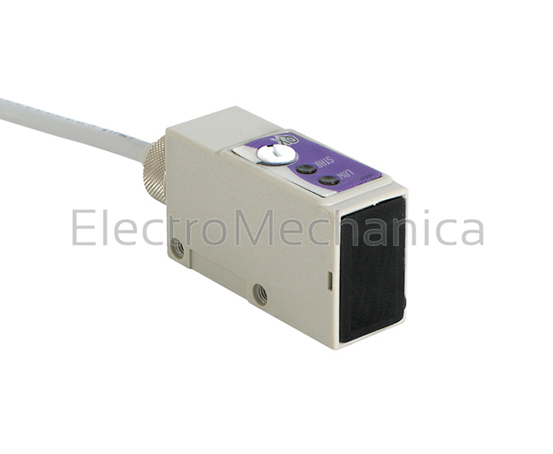

QX series (rectangular) photoelectric sensor Key features: Precision beam Axial and right angle optics NPN-PNP selectable output High output current (300 mA) Fast response time (0,75-0,5 ms) 2 LEDs (threshold and signal margin) Retro-reflective used together with a reflector Visible red light in retro-reflective, polarized and through-beam models SERIES QX series DESCRIPTION Cubic miniaturized photoelectric sensor SUPPLY PROTECTION Polarity reversal, impulse overvoltage, short circuit INDEX PROTECTION IP IP67 LED INDICATION Yellow (output status) / green (supply present) HOUSING MATERIAL ABS (glass fiber reinforced) SENSITIVITY Adjustable SUPPLY VOLTAGE 10 – 30 VDC DIFFUSED No RETRO-REFLECTIVE Yes POLARISED RETRO No THROUGH-BEAM No SENSING DISTANCE (MM) 4 meter PNP Yes NPN Yes NO Yes NC No CONNECTOR Cable
QXC/A0-1A
