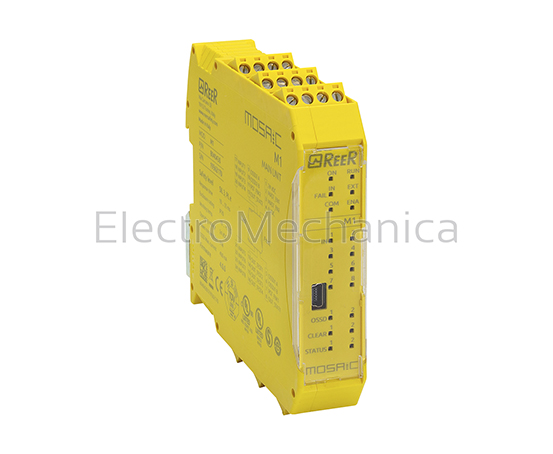

MOSAIC – Safety controllers MOSAIC is a modular configurable safety controller capable of managing all safety functions of machinery or plants. Made up of a Master unit which can operate as a stand-alone device or control up to 14 expansion units in a system. Capable of monitoring several safety sensors and signals such as: light curtains – photocells – laser scanners – emergency stops – electromechanical switches – safety door switches – magnetic switches – safety mats and edges – two-hand controls – hand grip switches – encoders and proximities for safety speed control – load cells – pressure switches – temperature, flow and level measurements. General features: Power supply: 24V DC ; 20% Safety level: SIL 3, PL e, SILCL 3, Cat. 4 Connections: Removable (screw terminal) blocks Dimensions: (H) 99 x (W) 22.5 x (D) 114 mm Mounting: DIN rail mounting according to EN 50022-35 standard Advantages Tamper-proof system configuration Reduced control panel dimension, design and construction time Logic configured via graphic interface, eliminating laborious wiring as with traditional solutions Simulation function allows to validate system functionality without connecting to a machine Series Mosiac Description Main unit, also usable as a stand-alone device, able to control any other expansion units Operating temperature -10 … 55 °C Storage temperature – 20 … 85 °C Safety level Safety level: sil 3 mm silcl 3 mm pl e mm cat. 4 Mounting Din rail mounting Dimensions (mm) (h) 99 x (w) 22.5 X (d) 114 mm
PROGRAMMABLE ENCHANCED MAIN UNIT
