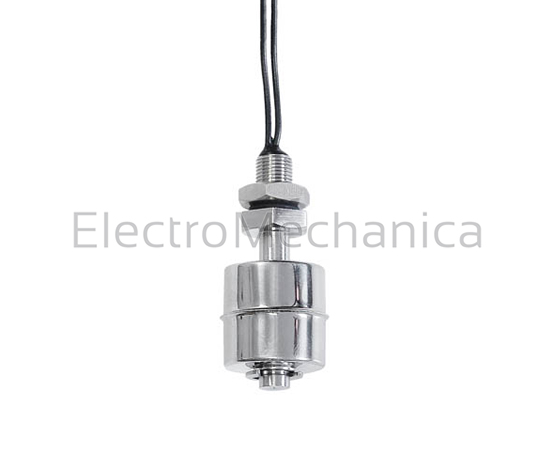

Float/flow switches (reed type) When the magnetic field (caused by an internal permanent magnet) is moved into the proximity of the sealed reed switch inside the stationary stem, the reed switch contacts close the electrical circuit. When the magnet is moved away from the reed switch the circuit is opened. The float switches are extremely compact, simple and easy to install and not effected by electrical interference and withstand chemicals. table DESCRIPTION Short stem vertical mount float switch (40 mm) MATERIAL SUS 304 stainless steel INTERNAL/EXTERNAL Internal MOUNTING Top or bottom THREAD SIZE (MM) G1/8 PRESURE WITHSTAND 20 BAR ELECTRICAL CONNECTION 300 mm cable SWITCH CURRENT 70 VA SWITCH VOLTAGE 250 VAC / 200 VDC SWITCH CONTACT N.O. (reversible by reversing float) ACCURACY 2 mm in water OPERATING TEMPERATURE -30°C – +125°C FLOAT SIZE (H) 28 mm () 28 mm
LS-317
