Photovoltaic (PV) surge protection devices Due to their location solar panels and in many cases the inverters are connected to are exposed to and particularly prone to direct or indirect lightning strikes. As PV systems are directly connected to the electrical networks of buildings surge protection is essential. Features: Short circuit interruption (SCI) technology for maximum safety in PV systems PV surge protection devices with plug-in or non plug-in cartridges for easy replacement Safe replacement of protection modules without arc formation due to integrated DC fuses DESCRIPTION Photovoltaic surge protection device TYPE Class 2 MAXIMUM PV VOLTAGE (UCPV) ‚¬° 1500V (8/20 ¼) DC+/DC- (IMAX) 12.5kA VOLTAGE PROTECTION (Up) < 6kV NUMBER OF POLES 3 CONFIGURATION DC+/DC- WIDTH IN 18 (MM) 4.5

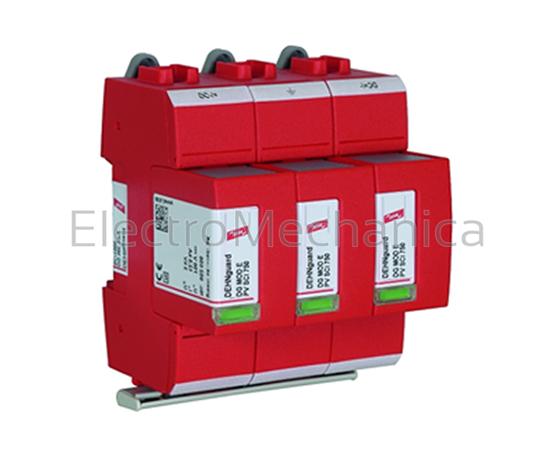

TYPE 2+3 25kA 3P PV 1500V SPD
Photovoltaic (PV) surge protection devices
ElectroMechanica
952520
