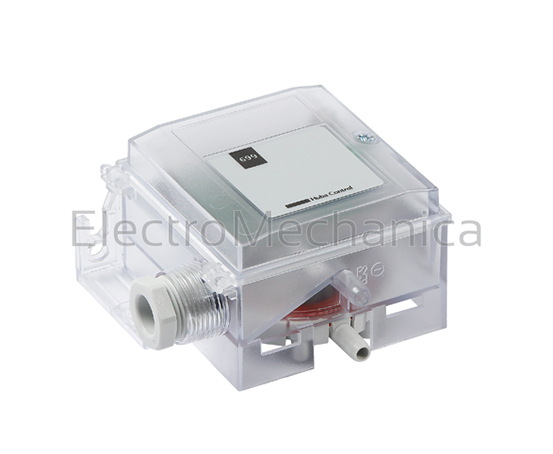

0-10 V PRESSURE TRANSMITTER 699.913011

TYPE 699 differential pressure transmitters The type 699 transmitters are available in switchable pressure ranges and with or without display. The full-version includes customer specific adjustment possibilities. Especially developed sensors for each pressure range ensure accurate long term stable measurement and the large variety of options provide the perfect platform for use in air conditioning technology as well as for fine measurement in the industrial and medical environment. Key features: Full scale adjustable Switchable output signals Adjustable measurement range Resettable Zero Point (reset button) Switchable response curve (linear or root-extracted) Fast, easy mounting (housing incorporates integral wall or ceiling mount bracket) Application fields: Check air flows Monitor filters and fan systems Pressure supervision in labs, production, storage and clean rooms Measuring slightest differential pressures in ventilation and air conditioning ducts SERIES Type 699 PRESSURE RANGE (MBAR) 1 / 3 / 5 SUPPLY (VDC) 13.5 – 33 OUTPUT (DC) 0 – 10 V ELECTRICAL CONNECTION screw terminal DESCRIPTION Differential pressure transmitter PRESSURE CONNECTION 6.2 mm DISPLAY No display MEDIUM Air and neutral gases RESPONSE TIME 20 ms TEMPERATURE RANGE 0 … +70 °C INDEX PROTECTION IP IP54 according to EN 60529 STANDARD OF CONFORMITY EN 61326-1, UL 60730-1, UL 60730-2-6 DIMENSIONS (MM) (H) 75 x (W) 92 x (D) 47.9
