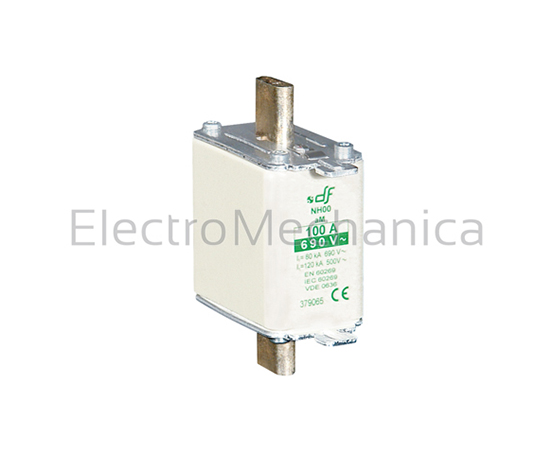

aM (motor protection) fuse links (top indicator) aM class (NH) for motor protection. These high breaking capacity fuse-links are intended for short circuit protection in motors, transformers and other loads with high inrush currents, with rated voltages up to 500 VAC (120kA) and 690 VAC (80kA). They offer excellent protection of switchgear (contactor, thermal overloads) due to the good current limiting capability and low I2t values. RATED CURRENT 100A RATED VOLTAGE 690V BREAKING CAPACITY 80kA CLASS aM FUSE SIZE NH00 DESCRIPTION aM NH motor protection HRC DIN fuse link CONFORMITY TO STANDARDS IEC/EN 60269-1, IEC/EN 60269-2, DIN 43620
100A aM DIN NH00 FUSE LINK 690V
Fuse links & Holders
ElectroMechanica
384065
