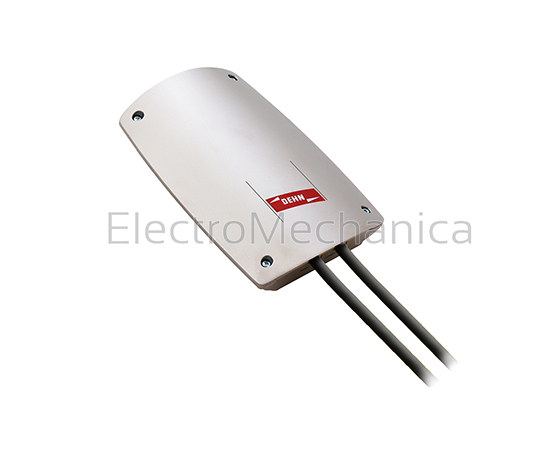

DEHNpatch outdoor type 2 Complete surge protection unit to protect surveillance camera’s, PoE ++ 4PPoE and other GBit Ethernet applications from damage due to surges. The IP65 rated enclosure permits safe to use outdoor. Easy mounting: even at great heights (universal brackets for poles and wall mounting) Lighting current discharge capacity (10/350 ¼) IP protection: 65 SERIES DEHNpatch DESCRIPTION Universal arrestor for industrial Ethernet,POE applications NOMINAL VOLTAGE (Un) 24 V VOLTAGE L-L (Up) ≤ 52 V (8/20 ¼) PER LINE (LIMP) 10 kA (10/350 ¼) PER LINE (LIMP) 2.5 kA NUMBER OF POLES 4 CONFIGURATION line-PG WIDTH IN 18 (MM) 12mm
10kA 24V OUTDOOR ETHERNET SPD
Surge protection devices
ElectroMechanica
929221
