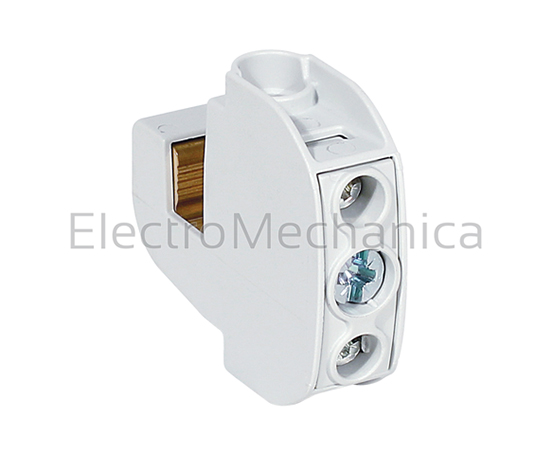

SSAK conductor-connection terminals Fastens directly onto busbar (maximum 10 mm thick) and provides 2 x outgoing cable terminals. General features: Insulated conductor connection terminals All insulated, finger-safe PA6 (self extinguishing, halogen free) For direct cable connection to copper bars 3 – 10 mm thick SERIES SSAK series DESCRIPTION Insulated busbar conductor connection terminal RATED CURRENT 114A CABLE SIZE (MM ) 2 x 1.5-16 mm DIMENSIONS (MM) (H) 47.8 x (W) 15.5 x (D) 55.2
114A INS BAR MNT TERM 2x16mm2 GRY
Distribution blocks & Busbar supports
ElectroMechanica
086105-0-4
