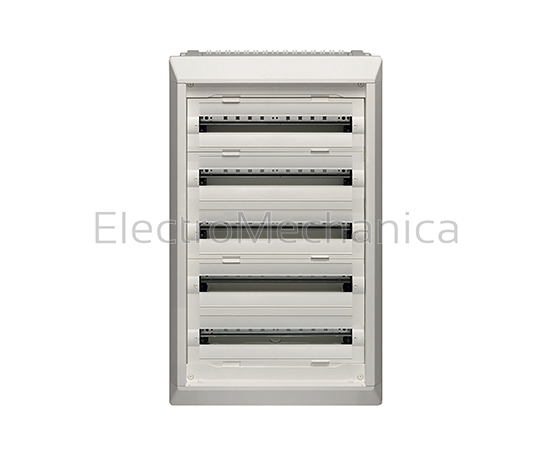

Vega D series surface and flush mounting distribution boards (IP41 with doors fitted) Vega D enclosures are suitable for installations in residential and commercial buildings for supplies up to 250A. Delivered in a ready-to-mount configuration. All enclosures have 24 module rows. Features: Metallic surface mounting enclosure Integrated quick connect earth terminals Removable front frame for optimal access to internal installed devices Doors sheet metal (plain or with transparent window) to be ordered separately Flush-mounting boards Removable chassis with uprights accommodating modular devices Metallic (easily removable) finishing frame DN=40 / AN=72 mm depth Metallic flush mounting tray (depth 110 mm with insulated cable entries top and bottom) SERIES Vega D NO OF MODULAR WAYS 120 (5 x 24) DESCRIPTION Surface mounting distribution board INDEX PROTECTION IP IP30/IK07 (without door) – IP41/IK08 (with door) – class II totally insulated COLOUR Light grey RAL 9010 DIMENSIONS (MM) (H) 987 x (W) 550 x (D) 150
FU52DN
