Industrial plugs and sockets Optima series > Appliance inlets (male pins – accept female connector) Insulation voltage: 690 VAC Standards: IEC 60309-2 Material: Thermoplastic (halogen free) Impact resistance: IK08 (1.7kg with a striking energy of 2J) Operating temperature: -25 mm +40°C (max operating temperature +60°C) Cable inlet: External cable stay with tulip clamping IP67 gland Flush mount appliance inlet (straight inlet) SERIES OPTIMA AMPERAGE 125A INSULATED VOLTAGE 690 VAC OPERATING TEMPERATURE -25 – +40°C (max operating temperature +60°C) GLOW WIRE TEST 650/850°C MATERIAL Engineering plastic (halogen free) NUMBER OF POLES 3P+E IMPACT RESISTANCE IK08 (1.7kg with a striking energy of 2J) PIN CONFIGURATION 4pin INDEX PROTECTION IP IP67/8/9 DESCRIPTION Appliance inlet FLANGE SIZE 114 x 114

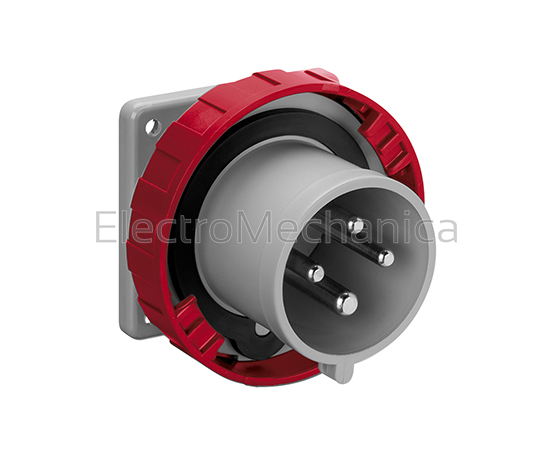

125A 3P+E IP67 FLUSH APPL. INLET
Industrial plugs & Sockets
ElectroMechanica
248.12596
