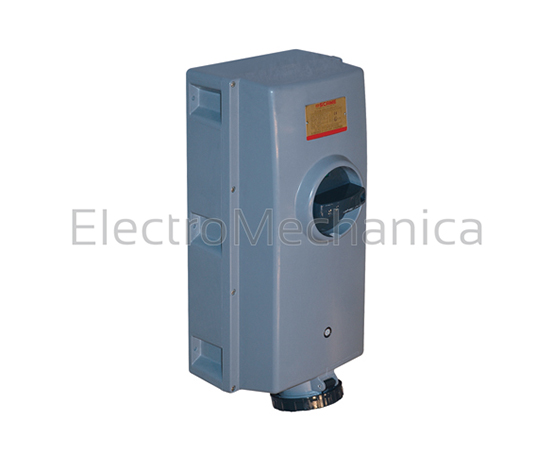

Advance-GRP extra heavy duty interlocked switch socket outlet 16 – 125A The ADVANCE GRP product line includes a series of 16A, 32A, 63A, 125A interlocked sockets (compliant with EN60309-4 standards) and the casings to contain them. It’s the most complete range of interlocked sockets produced in GRP (Glass Reinforced Polyester) thermosetting material Key features: Outstanding impact resistance Resistance to chemical agents Resistance to atmospheric agents Outstanding heat and fire resistance SERIES ADVANCE GRP AMPERAGE 125A INSULATED VOLTAGE 690 VAC OPERATING TEMPERATURE -25 – +40°C (max operating temperature +60°C) GLOW WIRE TEST test: 960°C – UL94 V0 MATERIAL Thermosetting (halogen free) RAL 7037 NUMBER OF POLES 3P+N+E IMPACT RESISTANCE IK10 (5kg with a striking energy of 20J) PIN CONFIGURATION 5pin INDEX PROTECTION IP IP67 DESCRIPTION Heavy duty switch socket outlet MECHANICAL INTERLOCKED Only operates with plug inserted, plug only removable with switch off EX CLASSIFICATION Atex code Ex II 2Dprotection type Ex tD A21 IP66 T 90°C LED INDICATION Correct supply and all phases present DIMENSIONS (MM) (H)575 x (W)280 x (D)253
125A 3P+N+E IP67 HD SUR SW SOCKET
Industrial socket outlets
ElectroMechanica
503.12587-01
