BCG series rail mount switching battery chargers Features: High efficiency Boost signal controlled by external contact Wide auxiliary supply range 110 240 VAC (±10%) 50/60Hz Maximum charging current limiting trimmer 20 100% (adjustable from front) Hiccup function for battery recharging when its voltage is lower than 50% rated value Protection: Mains input fuse Electronic lock in case of short circuit on battery terminals, reverse Battery polarity and battery overload LED indication of: Power ON Reverse battery polarity Charging operation I>30% Ic Overload or short circuit condition SERIES BCG OUTPUT VOLTAGE 12V OUTPUT CURRENT 12A MAX POWER CONSUMPTION (VA) 384 MAX POWER CONSUMPTION (W) 190 DESCRIPTION Auto battery charger ALARM OUTPUT RELAY (5A 30 VDC)AC1 duty MOUNTING DIN rail or chassis mounting (can be mounted vertically with adaptor) DIMENSIONS (H) 150 x (W) 162 x (D) 63

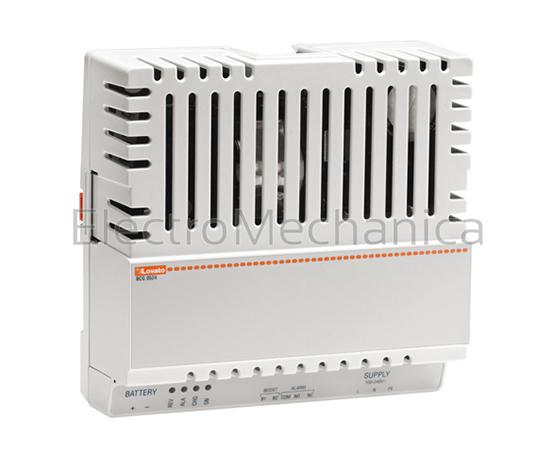

12A 12V MODULAR BATTERY CHARGER
Automatic battery chargers
ElectroMechanica
BCG1212
