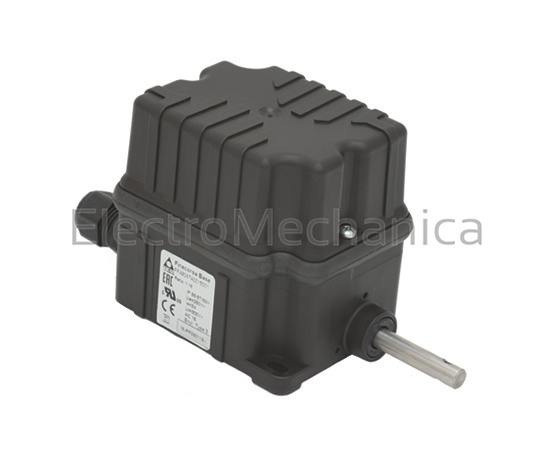

BASE series wormgear limit switches Rotary limit switches are used to control the movement of industrial machinery, they operate as an auxiliary controller for electric motors through a power interface. The switch shaft can be connected to the motor and after a preset number of revolutions, the cams operate a switch. Each cam can be set with a high accuracy due to precision cam adjusting screws. table SERIES Base series RATIO 1:50 NUMBER OF MICRO’S 2 DESCRIPTION Miniature wormgear limit switch INDEX PROTECTION IP IP42 UTILISATION CATEGORY AC 15 RATED THERMAL CURRENT 10 A RATED OPERATIONAL VOLTAGE 250 V RATED OPERATIONAL CURRENT 3 A CONNECTIONS Faston 6.3 mm DIMENSIONS (MM) (H) 86 x (W) 70 x (D) 106
PFA9142A0050001
