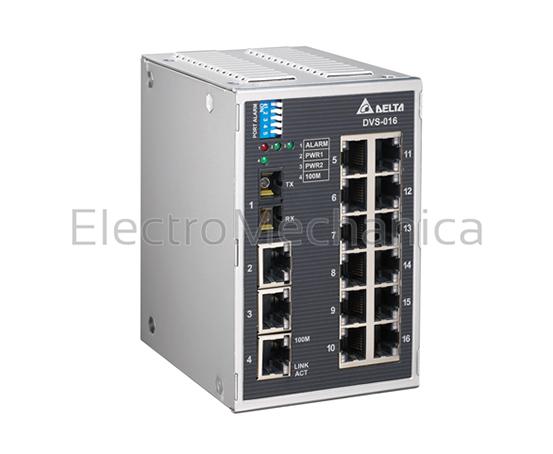

Unmanaged Industrial Ethernet switches DVS series industrial 5, 8 and 16-port Ethernet switches support IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDIX auto-sensing RJ45 ports. Specifically designed for harsh and hazardous industrial environments. Key features: Standard Ethernet switches RJ45 connector 10/100Base-T, auto MDI/MDI-X, auto negotiation Housing: industrial DIN-rail mounting, IP40 aluminium metal case Input Voltage: 2 sets, 12 to 48 VDC redundant terminal block input Supports IEEE 802.1p based QoS for packet forwarding precedence Std compliance: IEEE 802.3 10Base-T, 802.3u 100Base-T(X) and 100Base-FX, 802.3x flow control DESCRIPTION Standard Ethernet switch NUMBER OF PORTS 16 OPERATING TEMPERATURE -40 to +75°C ALARM CONTACT Yes MOUNTING DIN rail DIMENSIONS (MM) (H) 145.3 x (W) 75 x (D) 108.7
DVS-016W01
