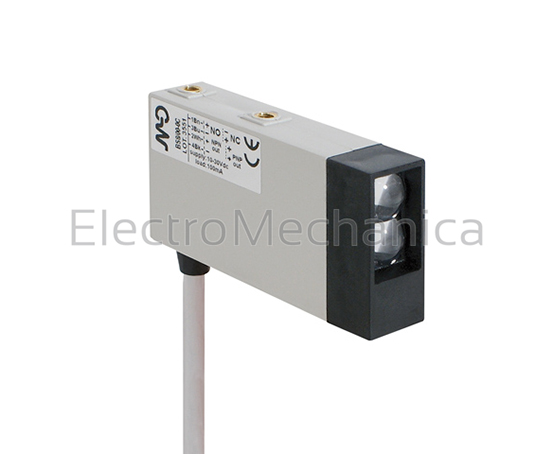

BS series (rectangular) photoelectric sensor Key features: High sensing range Completely filled with resin Diffuse reflection proximity type detection (no transmitter or reflector required) Muntifunctional DECOUT© output and logic connection possibilities (DC types) Multivoltage 20-253 Vac and TRIAC output with NO/NC selectable (AC types) SERIES QX series DESCRIPTION Cubic miniaturized photoelectric sensor SUPPLY PROTECTION Transient, short circuit INDEX PROTECTION IP IP67 LED INDICATION Red (output energized) HOUSING MATERIAL ABS polyetilene (cable exit) SENSITIVITY Adjustable SUPPLY VOLTAGE 10 – 30 VDC DIFFUSED Yes RETRO-REFLECTIVE No POLARISED RETRO No THROUGH-BEAM No SENSING DISTANCE (MM) 1.6 meter PNP Yes NPN Yes NO Yes NC Yes CONNECTOR Cable DIMENSONS (MM) (H)37 x (W) 16 x (D) 64/70
1600mm NPN/PNP/NO/NC DIFF PHOTO
Photoelectric sensors
ElectroMechanica
BS8/00-0C
