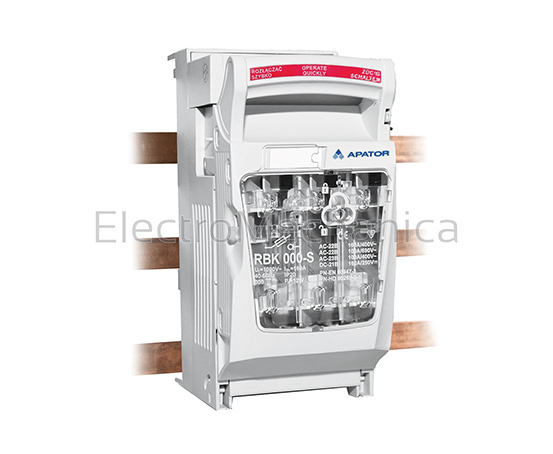

RBK series – NH-fuse switch disconnectors > (for panel mounting) RBK fuse switch disconnectors designed for distribution of electricity and protection of electrical equipment against short-circuits and overloads with industrial fuse links. They are conforming to IEC/EN 60947-1, IEC/EN 60947-3 standards. Intended for installation in low voltage distribution boards, cable and metering cabinets. Degree of touch protection: IP 20 – (IP30 for RBP and RBK 1 units) Lid lock and lid seal (with optional accessories) Voltage test can be performed through test holes in fuse link cover Fuse switch disconnectors for installation on 60mm busbar system Rated operational voltage Un: 690 V Insulation voltage Ui: 1000 V Rated impulse withstand voltage Uimp: 8 kV Termination: Bottom of switch (top terminals available on request) SERIES RBK 000 pro-SD-M NUMBER OF POLES 3 FUSE SIZE NH000 MAXIMUM CURRENT 160A CABLE TERMINAL M8 DESCRIPTION Fuse switch disconnectors for installation on 60mm busbar system RATED OPERATIONAL VOLTAGE 690V MOUNTING Panel mount DIMENSIONS (H) 191 x (W) 89 x (D) 112
160A 3P NH000 BAR MNT FU/SW DISC
Fuse switch disconnectors
ElectroMechanica
63-823234-041
