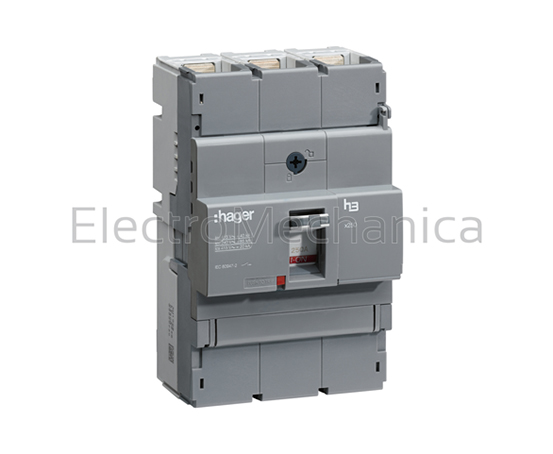

Moulded case circuit breakers (MCCB’s) High fault level moulded case circuit breakers Load break switches (switch disconnectors / isolators) Hagers range of moulded case circuit breakers MCCBs provides safe and easy solutions for low voltage electrical circuit protection. The state of the art circuit breakers offer both designers and installers a wide range of features and benefits.With configurations of 3 and 4 pole offered across the range all sizes of MCCB’s have an extensive range of internal and external accessories available such as; auxiliary switches, shunt trips, undervoltage releases, terminal kits, terminal shields, locking kits and rotary handles. Benefits Ease of installation Simple set up fo maximum installation efficiency Quick, easy and safe mounting of accessories Wide range of rated current ratings and breaking capacities Range of termination accessories DIN rail profile up to 250A Technical data 6 frame sizes: x160, x250, h250, h630, h1000, h1600 Breaking capacity: 25, 40, 50, 70kA TM trip unit: 25 to 400A LSI trip unit: 250 to 1600A Comply with IEC 60947-2 Current limiting type International certification and approvals THERMAL CURRENT 160A NUMBER OF POLES 3 pole DESCRIPTION Load break switch (isolator FRAME SIZE x160 SANS/IEC 60947-2 FREQUENCY 50/60 Hz
HCA160Z
