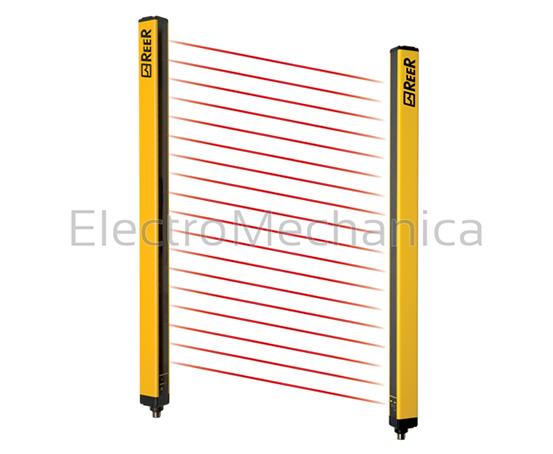

Safety light curtains With its compact, robust housing EOS series is ideal for the protection of any machine tool, in particular where space restrictions exist. Its zero-dead-zone on one side, allows EOS to keep its original resolution when installed on a plane and up to 40 mm when installed at 90° against another EOS unit. The hardware configuration feature does not require any programming allowing easy installation and replacement. General features: Power supply: 24 VDC ; 20% Dimensions: (W) 28 x (D) 30 mm Restart: Selectable manual/automatic Start/Restart Status display: LEDs for light curtain status and diagnostic Integrated function: Integrated External Device Monitoring (EDM) function Mounting: Via back slot with provided standard mounting brackets Connection: Emitter: M12 5-pin – Receiver: M12 8-pin OSSD safety outputs: 2 PNP – 400 mA at 24 VDC with short-circuit, overload, polarity reversal protection EOS4 series – For finger and hand protection > (With built in control functions) Detection: Finger protection (14 mm resolution) Safety Level: Type 4, SIL 3/SILCL 3, PL e, Cat. 4 Maximum range: Selectable 3/6 meter SERIES EOS4 series DESCRIPTION Safety light curtain RESOLUTION 14 mm PROTECTED HEIGHT 160 mm INDEX PROTECTION IP IP65/67 DETECTION Finger MAXIMUM RANGE 6 m SAFETY LEVEL Type 4, SIL 3, SILCL 3, PL e, Cat. 4 DIMENSIONS (MM) (H) 363 x (W) 28 x (D) 30
160MM TYPE4 FINGER LIGHT CURTAIN
