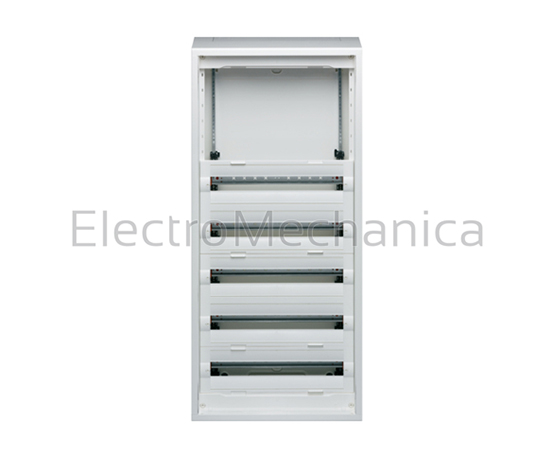

Vega D series surface and flush mounting distribution boards (IP41 with doors fitted) Vega D enclosures are suitable for installations in residential and commercial buildings for supplies up to 250A. Delivered in a ready-to-mount configuration. All enclosures have 24 module rows. Metallic surface mounting enclosure Integrated quick connect earth terminals Removable front frame for optimal access to internal installed devices Doors sheet metal (plain or with transparent window) to be ordered separately Surface-mounting boards Removable top and bottom plates for easier cable entry Supplied without top two rows. To be completed with internal modules of choice to accept main switch MCCB (up to 250A) or two rows modular devices or chassis plate table SERIES Vega D NO OF MODULAR WAYS 168 (7 x 24) DESCRIPTION Surface mounting distribution board INDEX PROTECTION IP IP30/IK07 (without door) – IP41/IK08 (with door) – class II totally insulated COLOUR Light grey RAL 9010 DIMENSIONS (MM) (H) 1200 x (W) 550 x (D) 193
FD72AN
