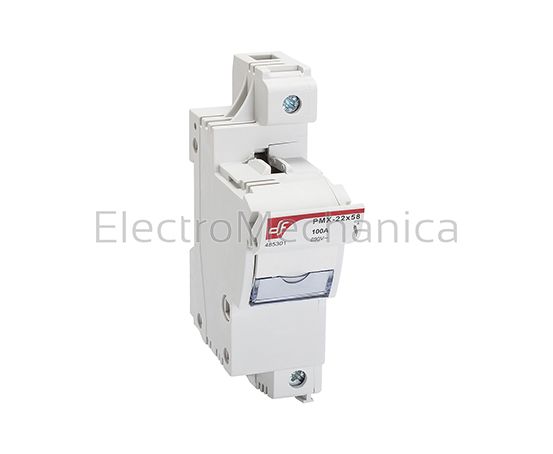

PMX series modular fuse holders Features: Optimized ventilation zones for improved heat dissipation Modular, compact fuse holder DIN rail mountable for cylindrical fuses Incorporated hinged transparent label holder for positive circuit identification High temperature resistance, self-extinguishing-halogen free body / silver plated copper contacts SERIES PMX series RATED CURRENT 125A RATED VOLTAGE 690 VAC NUMBER OF POLES 1 DESCRIPTION PMX industrial cylindrical fuse holder DIMENSIONS (MM) (H) 126.5 x (D) 76.5 WIDTH IN 17.5MM 2 FOR FUSE (MM) 22 x 58 MOUNTING DIN rail CONFORMITY TO STANDARDS IEC/EN 60269-1, IEC/EN 60269-2, IEC/EN 60947-3, CSA C22.2 4248-1, UL4248-7
1P 125A 22×58 FUSE HOLDER
Fuse links & Holders
ElectroMechanica
485301
