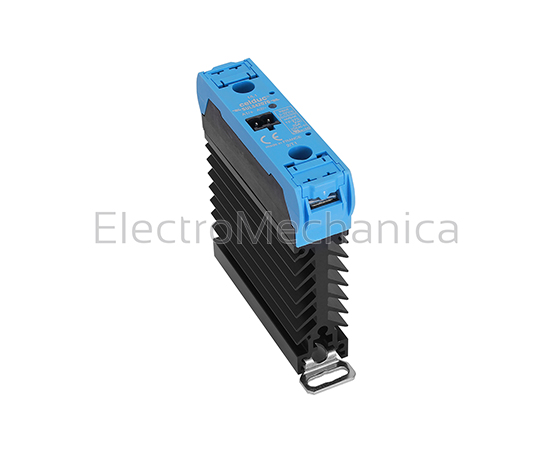

SUL8 series – Solid state relays (SSR) All Celduc SSR (solid state relays) are fitted with back-to-back thyristors and employ 4th generation ;technology with a very long life expectancy. General features: Cost-effective, reliable and compact solution (22.5 mm pitch SSR solution) Mounting configuration compatible with all standard hockey puck style relays Over-voltage protection on input (transil) IP20 terminal protection cover (removable) Control status LED indication Complete “ready for use” SSR + heat sink combination 8 range – for most load types – lamps and infrared table SERIES SUL8 SWITCHING CURRENT 25A SWITCHING VOLTAGE 12 – 275 VAC PEAK VOLTAGE 600V CONTROL VOLTAGE 180 – 240 VAC DESCRIPTION Complete solid state relay + heat sink combination INDEX PROTECTION IP IP20 DIMENSIONS (MM) (H) 90 x (W) 22.5 x (D) 112
SUL842970
