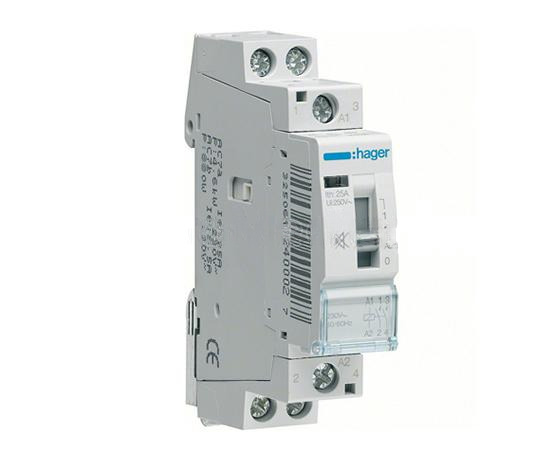

Modular contactors with low noise coil Features: No humming while energised / low switching noise Modular DIN rail mounting (same cut-out as MCBs) RATED POWER AC-1 (A) 25A COIL VOLTAGE 24 VDC DESCRIPTION Low noise modular standard contactor CONTACT CONFIGURATION 2NO WIDTH IN 17.5MM 1 RATED OPERATIONAL VOLTAGE 230 V CONNECTION CROSS-SECTION RIGID CABLE 1 / 10mm CONNECTION CROSS-SECTION FLEXIBLE CABLE 1 / 6mm OPERATING TEMPERATURE -10 to 50 °C FREQUENCY 0/0 Hz MANUAL OVERIDE CONTROL Yes HUMFREE No humming while energised/low switching noise
ERD225SDC
