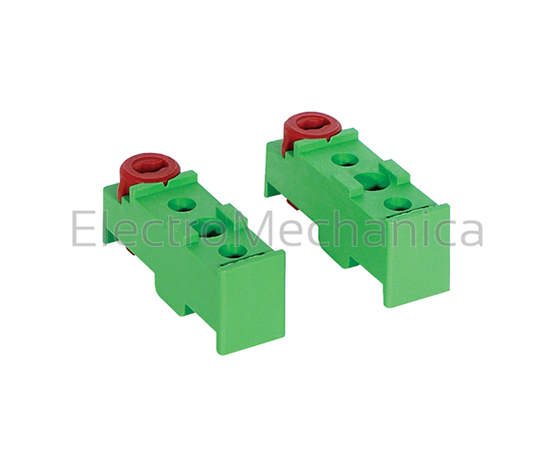

Multi-pole stepped busbar supports The MRS range of busbar supports are four pole (3Ph+N) with stepped phases for easy access and termination. Ideally combined with drilled and threaded copper busbars to make up distribution terminals of any size. Insulating protection covers are available (in one-meter lengths) to provide protection against accidental touch of the bars. table SERIES MRS series DESCRIPTION 3 Phase + Neutral busbar supports NUMBER OF BARS 2 MAX BAR WIDTH 12 mm AMPERAGE 65A INSERT MATERIAL Brass with zinc plated screws INSULATING BODY MATERIAL Polycarbonate and polyamide MOUNTING Screw down or DIN rail mounting EN50022 CONFORMITY OF STANDARDS EN 60998-1, EN 60998-2-1 IPK RATINGS PK ratings are influenced by the distance between supports PACK QUANTITY Supplied in pairs (2pieces)
MRS122
