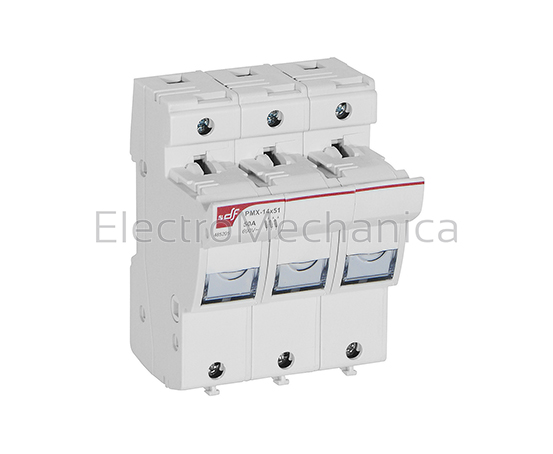

PMX series modular fuse holders Features: Optimized ventilation zones for improved heat dissipation Modular, compact fuse holder DIN rail mountable for cylindrical fuses Incorporated hinged transparent label holder for positive circuit identification High temperature resistance, self-extinguishing-halogen free body / silver plated copper contacts SERIES PMX series RATED CURRENT 50A RATED VOLTAGE 690 VAC NUMBER OF POLES 3 DESCRIPTION PMX industrial cylindrical fuse holder DIMENSIONS (MM) (H) 110 x (D) 76 WIDTH IN 17.5MM 4.5 FOR FUSE (MM) 14 x 51 MOUNTING DIN rail CONFORMITY TO STANDARDS IEC/EN 60269-1, IEC/EN 60269-2, IEC/EN 60947-3, CSA C22.2 4248-1, UL4248-7
3P 50A 14×51 FUSE HOLDER
Fuse links & Holders
ElectroMechanica
485205
