100 mm – universal busbar support system The 100 mm system is a compact busbar system with 100 mm spacing between busbar centres. Busbars are arranged in a horizontal format, permitting simple attachable clip-on accessories such as connections for various cable and/or flexible or solid busbars, fuse holders and switches as well as easy connectors which accommodates circuit breakers, contactors etc. Busbar supports 100 mm 1250A: Horizontal mounting of undrilled busbars 30 – 40 – 50 – 60 mm wide Permits direct mounting of accessories: various termination, fuse/circuit breaker protection SERIES 100 mm universal busbar support system DESCRIPTION Universal 100 mm busbar support FOR BUSBAR SIZE (MM) – WIDTH 30 – 60 mm FOR BUSBAR SIZE (MM) – THICK 10 mm NUMBER OF POLES 3 RATED CURRENT 1250A

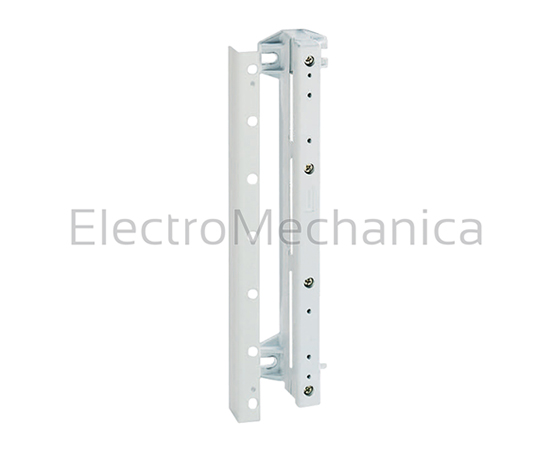

3P BUSBAR SUPPORT – 100mm CENTRES
