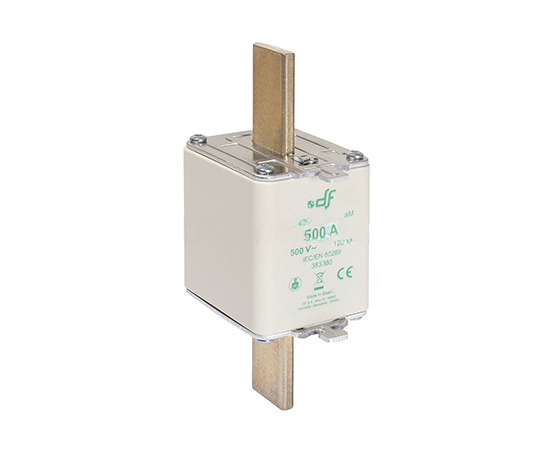

aM (motor protection) fuse links (top indicator) aM class (NH) for motor protection. These high breaking capacity fuse-links are intended for short circuit protection in motors, transformers and other loads with high inrush currents, with rated voltages up to 500 VAC (120kA) and 690 VAC (80kA). They offer excellent protection of switchgear (contactor, thermal overloads) due to the good current limiting capability and low I2t values. RATED CURRENT 400A RATED VOLTAGE 500V BREAKING CAPACITY 120kA CLASS aM FUSE SIZE NH2 DESCRIPTION aM NH motor protection HRC DIN fuse link CONFORMITY TO STANDARDS IEC/EN 60269-1, IEC/EN 60269-2, DIN 43620
400A aM DIN NH2 FUSE LINK 500V
