High-speed expansion modules for SA/SE/SX/SV PLCs Extension modules simply clip onto MPUs to add many additional functions, additional digital and/or analog I/Os, communication, temperature measurement and load cell monitoring. Key features: Conversion time: 250 ¼ / point Output: 0-10V, -10-10V, 4-20mA, 0-20mA Analog I/O extension modules (left side high speed) Simply clips onto and derives supply from main MPU General extension (right side) – High speed extension (left side) Signal range: Input: 1-5V, 0-5V, -5-5V, 0-10V, -10-10V, 4-20mA, 0-20mA, -20-20mA HIGH SPEED EXTENSION MODULES SA/SE/SX/SV PLCs SUPPLY 24 VDC DIGITAL INPUTS (DI) 4 DIGITAL OUTPUTS (DO) 0 DESCRIPTION High speed Input/Output extension module MOUNTING Left side SIGNAL RANGE (INPUT) 1-5V, 0-5V, -5-5V, 0-10V, -10-10V, 4-20mA, 0-20mA, -20-20mA RESOLUTION 16 bit CONVERSION TIME 250 ¼ / point

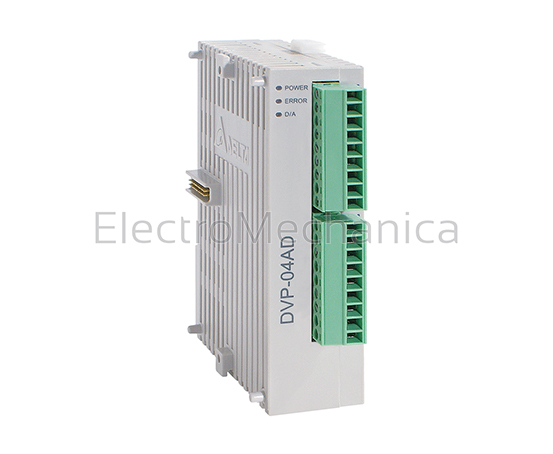

DVP04AD-SL
