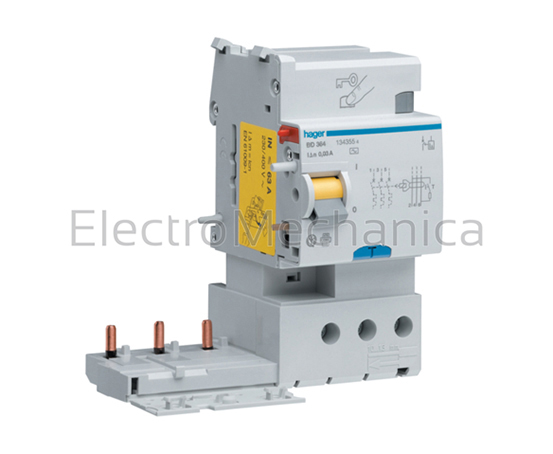

Add-on earth leakage devices for MCBs For connection to all MCBs to be mounted to the right side of 2, 3, 4 pole circuit breakers. The combined unit provides effective protection against overloads, short circuits as well as earth leakage faults. Features independent indication of earth fault or overload when tripped. CURRENT RATING 63A SENSITIVITY 300 mA DESCRIPTION Earth leakage device WIDTH IN 17.5MM 3 NUMBER OF POLES 3 RATED OPERATIONAL VOLTAGE 230/400 V OPERATING TEMPERATURE -5 to 40 °C FREQUENCY 50 Hz NEUTRAL POSITION Left
63A 300mA 3P E/LEAKAGE
Earth leakage protection
ElectroMechanica
BF364
