Industrial switched sockets(interlocked) Advance 2 series industrial switch sockets(large version) SCAME, ADVANCE 2 Series, interlocked socket outlets have smooth and well-connected surfaces, with no sharp edge or lines, included the hand grip, which ensure top safety and ergonomic use as well as easy cleaning, being installed in environments that particularly need such requirement. Screwless plate Wide room for cabling Grip can be locked Plate with overprinted window Improved mechanical interlocking system. Threaded cable inlet with possible in-out device on the bottom Very few elements to be assembled for easy and quick installing and maintaining operations. SERIES ADVANCE 2 AMPERAGE 63A INSULATED VOLTAGE 690 VAC OPERATING TEMPERATURE -25 – +40°C (max operating temperature +60°C) GLOW WIRE TEST 650/850°C MATERIAL Engineering plastic (halogen free) NUMBER OF POLES 3P+N+E IMPACT RESISTANCE IK07 (500g with a striking energy of 2J) PIN CONFIGURATION 5pin INDEX PROTECTION IP IP67 DESCRIPTION Surface switch socket outlet MECHANICAL INTERLOCKED Only operates with plug inserted, plug only removable with switch off DIMENSIONS (MM) (H)303 x (W)136 x (D)166-207

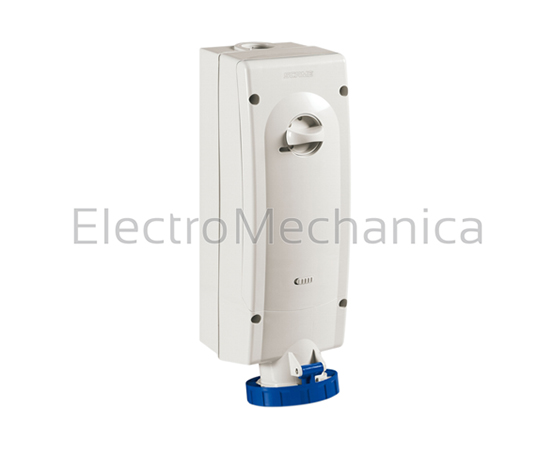

63A 3P+N+E IP67 SURF SWTH SOCKET
Industrial socket outlets
ElectroMechanica
561.6387
