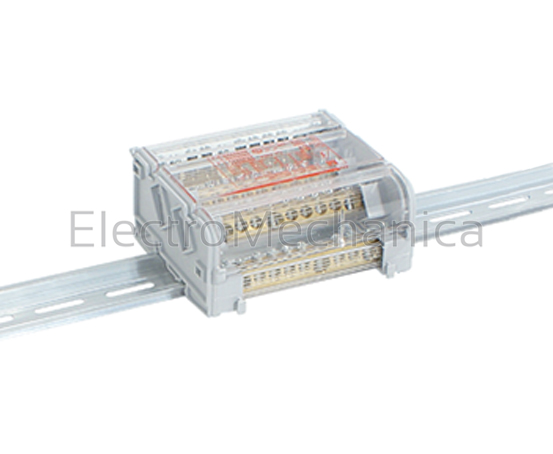

Multi-pole distribution terminals 750V General features: Supplied with insulated DIN rail cover Brass terminal bar with zinc plated screws Support material polyamide – cover polycarbonate Low profile 45 mm deep (height of standard MCBs) Additional terminal bars M107/1011/1015 > can easily be clipped onto above distribution terminals DESCRIPTION Multi-pole distribution terminals AMPS 125A NUMBER OF POLES 3 Phase + Neutral (4 pole) IPK 22kA CONFORMITY OF STANDARDS Standards: EN 60998-1:2004, EN 60998-2-1:2004 DIMENSIONS (MM) (H) 98 x (W) 72
7W 4P DISTRIBUTION BLOCK 125A
Distribution blocks & Busbar supports
ElectroMechanica
1MR12574
