Slimline Programmable Logic Controllers (PLCs) Deltas high-performance, high-speed DVP series PLCs are the most efficient and incorporates communication capabilities. Advantages include numerous built-in convenient commands for easy operation access and communication function monitoring. The module-type unit affords tremendous space-saving, allowing simple, clip-on expansion possibilities. The PLCs high performance and extensive I/O units represent a high-value solution for machine control and industrial automation. Common characteristics Adopts 32-bit CPU Clip-on extension modules- general (right side) Plug-in terminals for ease of wiring and maintenance Compact dimensions (H) 90 mm x (D) 60 mm DIN rail mounting Built-in high speed counters up to 100 – 200 kHz (model dependant) Dual communication ports RS232 and RS485 MODBUS ASCII/RTU compatible Program language: (IL) instruction list, (LD) ladder diagram, (SFC) sequential function chart SX2 series digital and analog I/Os SX2 series slim type PLC offers 6/14 digital points and built-in 12-bit analog I/O points. It is extendable with DVP-S series left-side and right-side extension modules. Key features: Built-in mini USB No battery required Execution speed: LD: 0.35¼ Supports 2-axis linear and arc interpolation High-speed counters: 2 x 100kHz and 6 x 10kHz High speed pulse output: 2 x 100kHz and 2 x 10kHz Program capacity: 16k steps / data register: 10k words Supports DVP-S series left-side (high speed) expansion modules Supports standard MODBUS ASCII/RTU protocol and PLC link function SERIES SX2 series SUPPLY 24 VDC INPUTS – DIGITAL INPUT 8 INPUTS – ANALOG INPUT 4 OUTPUTS – DIGITAL OUTPUT 6 OUTPUT – ANALOG OUTPUT 2 DESCRIPTION Analog input/output (I/O) slim PLC WIDTH (MM) 70 OUTPUT TYPE Relay

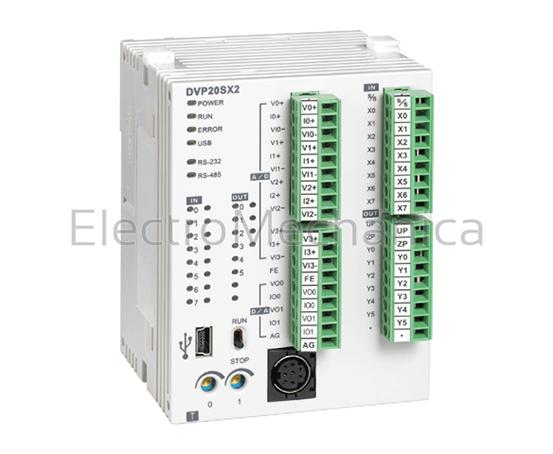

DVP20SX211R
