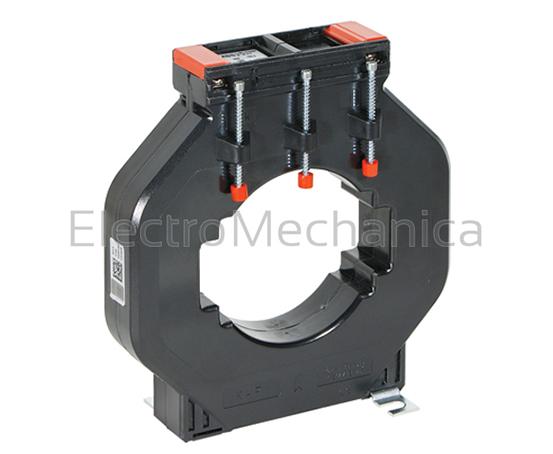

Current transformers General specifications: Isolation class: E Maximum operating voltage: Um ≤ 0.72 kV Nominal frequency: 50Hz (others on request) Nominal thermal short-time current: Ith = 60 x In Over-current limiting factor: FS 5 up to 1500 A nominal current MBS AG current transformers conform fully to: DIN VDE 0414/1 – DIN 42600 – IEC 61869/1+2 – VBG 4 Class 0.2 current transformers 5A secondary ASK 123.3 current transformers table MODEL ASK 123.3 RATIO 3000/5A ROUND CONDUCTOR 100 mm PRIMARY BAR CONDUCTOR 120 x 30 / 100 x 50 DESCRIPTION Standard current transformer CLASS 0.2s VA 15 DIMENSIONS (MM) (H) 184.8 x (W) 172 x (D) 52
