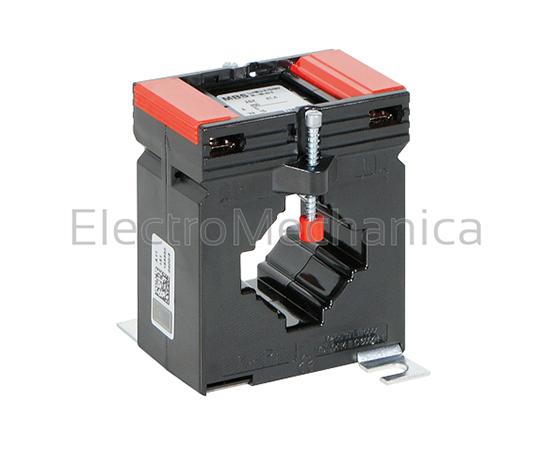

Current transformers General specifications: Isolation class: E Maximum operating voltage: Um ‚¬° 0.72 kV Nominal frequency: 50Hz (others on request) Nominal thermal short-time current: Ith = 60 x In Over-current limiting factor: FS 5 up to 1500 A nominal current MBS AG current transformers conform fully to: DIN VDE 0414/1 – DIN 42600 – IEC 61869/1+2 – VBG 4 Standard current transformers > (1A secondary – class 1) ASK 41.4 current transformers MODEL ASK 41.4 RATIO 150/1A ROUND CONDUCTOR (⌀) 32 mm PRIMARY BAR CONDUCTOR 40 X 10 / 30 X 10 mm DESCRIPTION Standard current transformer CLASS 1 VA 5 DIMENSIONS (MM) (H) 86 x (W) 71 x (D) 40
ASK 41.4 150/1A CT cl 1
