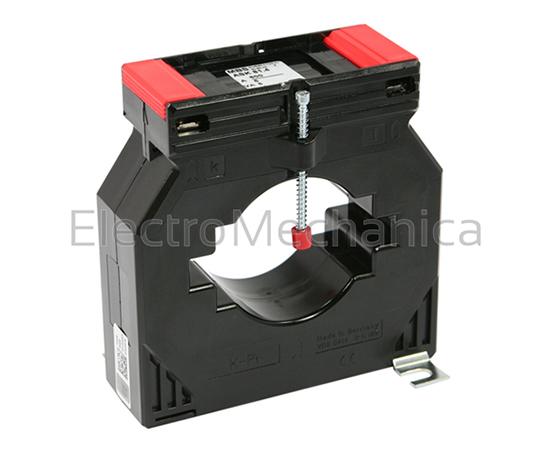

ASK 81.4 1250/1A CT cl 1 21264

Current transformers General specifications: Isolation class: E Maximum operating voltage: Um ° 0.72 kV Nominal frequency: 50Hz (others on request) Nominal thermal short-time current: Ith = 60 x In Over-current limiting factor: FS 5 up to 1500 A nominal current MBS AG current transformers conform fully to: DIN VDE 0414/1 – DIN 42600 – IEC 61869/1+2 – VBG 4 Standard current transformers (1A secondary – class 1) ASK 81.4 current transformers table MODEL ASK 81.4 RATIO 1250/1A ROUND CONDUCTOR 55 mm PRIMARY BAR CONDUCTOR 80 X 10 / 60 X 30 mm DESCRIPTION Standard current transformer CLASS 1 VA 15 DIMENSIONS (MM) (H) 124 x (W) 120 x (D) 40
