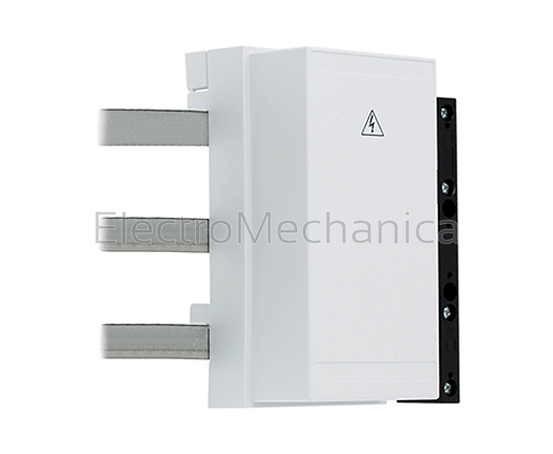

MULTIBLOC series -60 mm busbar system > (for panel mounting) Parking position of the switch cover (even with inserted fuse-links ) Modular terminal covers can be extended as required Lid lock and lid seal (with optional accessories) Rated operational voltage: 690 V Insulation voltage Ui: 1000 V Rated impulse withstand Uimp: 8 kV Feed-in terminals Busbar 3 phase feed-in terminals SERIES Multibloc series – 60mm busbar system NUMBER OF POLES 3 FEED IN TERMINALS Busbar 3 phase feed-in terminals TERMINAL SIZE 16…50 mm2 DESCRIPTION Bar mount feed-in terminal DIMENSIONS (H) 201 x (W) 54 x (D) 44
BUSBAR PROTECTION COVER 16-50mm2
