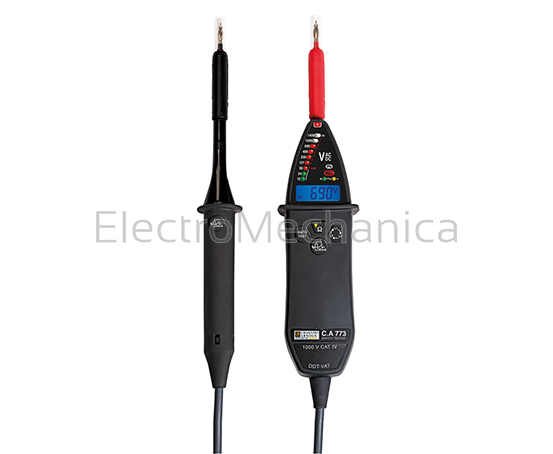

Voltage Absence Tester (VAT) CAT IV 1000 V Installations connected to an electricity distribution network, require measurements to be performed with power off to avoid electrical hazards (EN 50110-1 standard, DIN VDE 0682-401, NF C 18-510, etc.) Securing the installation to ensure that it is non-current-carrying, requires the use of a Voltage Absence Tester. Comprehensive integrated autotest Indication of type of fault also displays a text message for information IP65 protection For indoor and outdoor use, significantly higher than the IP54 rating required by the standard Audible and visual continuity Indication up to 100 Ω, in compliance with standards recommendations Removable test probes To meet specific requirements in certain applications (various models available) AC and DC voltage testing: Voltage detection takes priority, is automatic and indicated by distinct visual (bargraph) and intermittent beep. Stray voltages can be detected by pressing two buttons simultaneously to switch to low impedance mode. 2-wire phase rotation with microprocessor: Simple and quick, the 2-wire phase rotation function with microprocessor is useful in all circumstances, including installations powered by an electrical generator set or behind an isolating transformer. Continuity and resistance testing: Checks that conductors are correctly connected. Continuity (R 100 Ω) is indicated by a continuous audio signal whilst the resistance value is displayed directly. Residual Current Device (RCD) trip test up to 30 mA: By simultaneously pressing the double command, you can cause a fault current sufficient to trip the RCD to flow through a low-impedance load. Ergonomics specially designed for use in the field: Digital display, removable test probes ensure excellent handling. A built-in torch illuminates the point of measurement. Delivered with: manual, set removable test probes, 2x 1.5 V LR03/AAA batteries, Velcro strap. table MODEL C.A 773 DESCRIPTION CAT IV 1.000 V Voltage Absence Tester (VAT) DISPLAY LEDs + backlit digital display VOLTAGE 12 VAC – 1.000 VAC / 12 VDC – 1.400 VDC IMPEDANCE 500 Ω / Polarity indication CONTINUITY & RESISTANCE Buzzer trigger threshold 100 Ω typical (150 Ω max.) STANDARDS IEC 61243-3:2009, EN 61243-3:2010, IEC 61010 1.000 V CAT I WARRANTY Three year ( terms and conditions dependent)
P01191773
