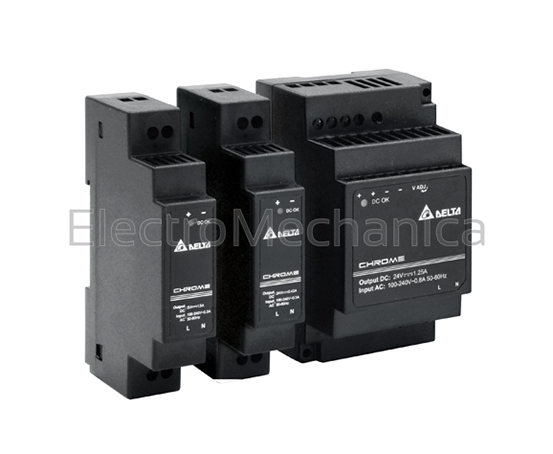

Power supplies Delta – worlds leading power supply manufacturer offers state-of-the-art designs made to withstand harsh industrial environments in accordance with ATEX requirements. The rugged ultra-compact case is both shock and vibration resistant according to IEC 60068-2. General features: Product features: RoHS compliant Full corrosion resistant aluminium chassis Provides – overload, overvoltage and thermal protection Conformal coating on PCBAs to protect against chemical and dust pollutants Wide input voltage range 85 to 264 VAC (1 phase) – 320 to 600 VAC (3 phase) Certification: UL508, EN 60950, cULus 60950, EN 50178, EN 60204, GS, CCS Aus Power boost (enables reserve power for reliable start up of loads with high inrush currents) CHROME series modular Chrome DIN rail power supply is a compact, modular unit designed for compact cabinets, they feature a universal AC input range and are certified to international safety standards ITE and ICE. Features: Universal AC input voltage without power de-rating Class II double insulation (no earth connection required) Conforms to harmonic current IEC/EN 61000-3-2, Class A Compact modular housing (same profile and cut-out as standard MCB’s) Safety approval to IEC/EN/UL 60950-1 (ITE standard) and UL 508 (industrial standard) SERIES CHROME series DESCRIPTION Power supply INPUT VOLTAGE 90 – 264 VAC OUTPUT VOLTAGE 24 VDC (adjustable) RATED LOAD (W) 60 RATED LOAD (A) 2.5 HOUSING Plastic MOUNTING Modular DIN rail mounting – same profile and cut-out as standard MCB’s OPERATING TEMPERATURE -20 to + 70 °C DIMENSIONS (MM) (H) 91 x (W) 71 x (D) 56
DRC-24V60W1AZ
