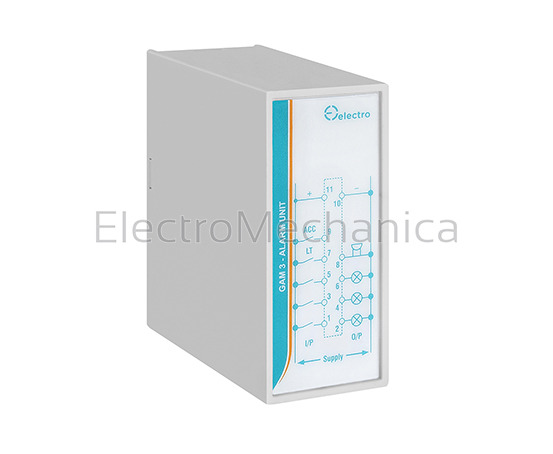

Alarm Module The Electro 11 pin plug-in range of control and timing devices are to be installed into a standard 11 pin base making installation easy and convenient. Alarm module to control alarm signals and generate the appropriate output for simple annunciator panels. The system can be expanded by bridging all common terminals of the modules. A flasher unit (R1F) isused to initiate the flashing alarm outputs before accepting them. Features: Expandable Flasher input Hooter output Output 10A SPDT Alarm accept facility Common 1amp test facility Three normally open alarm inputs Three normally open alarm outputs DESCRIPTION Control alarm signals CONTACT 4 x 5A SPDT ALARM INPUTS 3 N/O (positive common) ALARM ACCEPT N/O (positive common) LAMP TEST N/O (positive common) FLASHER 30 flashes per minute RATED VOLTAGE 250V MECHANICAL LIFE 10×106 cycles PROTECTION INDEX IP IP 20 OPERATING TEMPERATURE -10 to + 50°C STORAGE TEMPERATURE -50 to + 85°C DIMENSIONS (MM) (H) 92 x (W) 36 x (D) 64
GAM3012D
