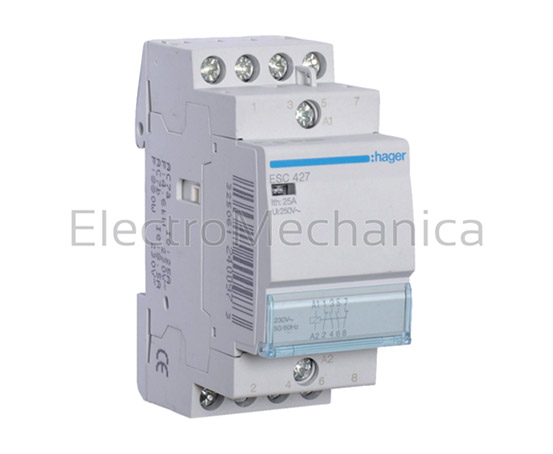

Modular contactors Features: Four ratings: 16A, 25A, 40A, 63A Modular DIN rail mounting (same cut-out as MCBs) One and two module contactors feature economy low consumption, low heat dissipation coils RATED POWER AC-1 (A) 25A RATED POWER AC-3 (400V) 2.6kW COIL VOLTAGE 230 VAC DESCRIPTION Modular standard contactor CONTACT CONFIGURATION 2NO + 2NC WIDTH IN 17.5MM 2 RATED OPERATIONAL VOLTAGE 230 V CONNECTION CROSS-SECTION RIGID CABLE 1 / 10mm CONNECTION CROSS-SECTION FLEXIBLE CABLE 1 / 6mm OPERATING TEMPERATURE -10 to 50 °C FREQUENCY 50 Hz
ESC427
