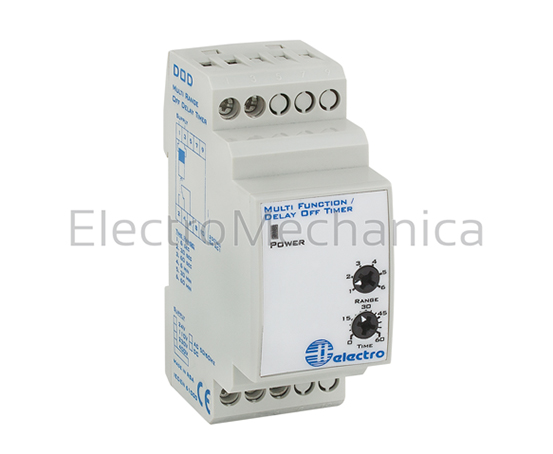

True off delay electronic timer The Electro D range of control and timing devices are compact modular units for easy introduction into standard panels and/or distribution boards. They mount directly onto DIN rail and align with standard miniature circuit breakers (MCB’s). Multi-range off delay (delay on release) timer with advanced backup power circuitry to deliver wide time ranges. DIN rail mountable for front and back panel positioning. The unit has to be powered for no less than 30 sec or 30% of set time range. If permanent power is available the DMFT timer should be used. Features: Delay on de-energisation timer (delay on removal of supply) DESCRIPTION True off delay electronic timer TIME RANGE (NUMBER) (1) 0.3 – 6s, (2) 0.9 – 30s, (3) 6 – 60s, (4) 0.9 – 6m, (5) 0.3 – 30m, (6) 6 – 60m CONTACT 8A SPDT RATED CURRENT 8A RATED VOLTAGE 250V MECHANICAL LIFE 10×106 cycles PROTECTION INDEX IP IP 20 OPERATING TEMPERATURE -10 to + 50°C STORAGE TEMPERATURE -50 to + 85°C DIMENSIONS (MM) (H) 92 x (W) 36 x (D) 64
DELAY OFF TIMER 230VAC
Modular timing devices
ElectroMechanica
DOD230A
