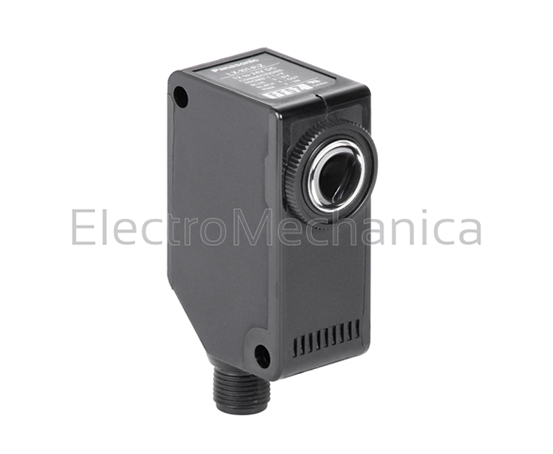

LX-100 series mark/colour sensor The LX-100 series – a combined LED contrast and colour sensor – can be used both as a high-speed contrast sensor to quickly and reliably detect printer’s marks, for example, and as a high-precision colour sensor. In contrast sensing mode, the sensor automatically selects the optimum emitting LED during teach-in (static or dynamic teach-in method) from the transmitting light source (red, green and blue LEDs). With a response time of just 45, this sensor is perfect for high processing speeds like those required in printing presses, for example. In colour mode, an integrated microprocessor with a 12-bit A/D converter digitally processes the signals of the colour to be detected in red, green and blue primary colour components. This ensures that even the most minute colour differences or merest of tints can be accurately distinguished. Key features: Compact size 4-digit digital display Timer function (ON/OFF-delay) Two inverse outputs (cable type) High resolution 12-bit A/D converter High precision coaxial reflective optical system Three different emitting LEDs (red, green, blue) Teach-in for simple settings (external teaching also possible) SERIES LX-100 series DESCRIPTION Digital mark detector SUPPLY VOLTAGE 12 – 24 VDC PNP Yes NPN No LIGHT-ON Yes DARK-ON Yes CONNECTOR M12 plug (4 pin) SENSING 3 LEDs: red, green, blue SENSING MODES 2 (selectable): Mark mode and Colour mode SENSITIVITY 2-level teaching/Limit teaching – Mark / 1-level teaching – colour LED INDICATION 4-digit red LED display and various LED indicators INDEX PROTECTION IP IP67 HOUSING MATERIAL PBT DIMENSIONS (MM) (H) 35 x (W) 24 x (D) 57
LX-101-P-Z
