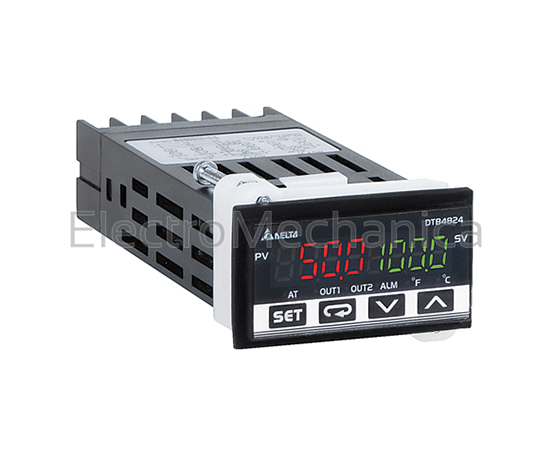

DTB series “advanced” temperature controller Compared with DTA series, DTB is additionally equipped with linear voltage signal output and dual output control, capable of executing heating and cooling controls simultaneously in a temperature control system and fast reaching the target temperature. Features: 3 groups of alarm outputs Two groups of outputs to auto-tune 2 groups of PID parameters Sampling rate: Analog input: 0.15 sec, Thermocouple or platinum RTD 0.4 seconds Built-in dual loop output control for heating / cooling (RS485 digital comm. 2.400 – 38.400bps) SERIES DTB series SUPPLY VOLTAGE 100 – 240 VAC FREQUENCY 50/60 Hz INDEX PROTECTION IP IP65 PANEL SIZE (MM) – W X H 48 x 24 THERMOCOUPLE Type (K-J-T-E-N-R-S-B-L-U-TXK) – Platinum RTD: Pt100, JPt100 DESCRIPTION Advanced temperature controller LCD DISPLAY Process Value (PV) Red colour – Set point (SV) Green colour OUTPUT 1 Relay OUPUT 2 Relay
DTB4824RR
