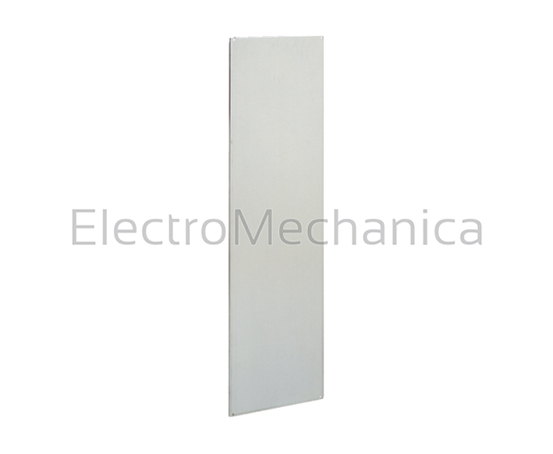

Quadro+ floor standing distribution board system Quadro + enclosure systems are supplied in a flat-pack format for ease of transportation and on-site assembly. Cabinets can be joined horizontally to form complete multi-cabinet systems without limitations. Ideal for applications up to 4000A. Basic component requirement to assemble a single floor standing cabinet: Top and bottom frames four uprights plinth side panels back panel top and bottom plates door Component: Chassis plates (full height) table SERIES Quadro + series INDEX PROTECTION IP IP55 (with door) MATERIAL Sheet metal (class 1) DESCRIPTION Chassis plate, galvanized steel TYPE Full height DIMENSIONS (MM) (H) 1900 x (W) 900
FN746E
