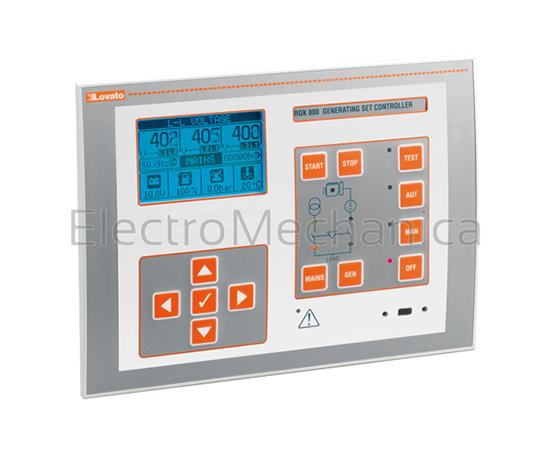

RGK800 automatic mains failure (AMF) gen-set controllers Features: Engine protection Programmable alarm properties Programmable inputs and outputs Supervision in open transition for contactors, motorised circuit breakers and changeover switches Automatic starting of generator and load switching to stand-by emergency source in case of mains failure RTC clock-calendar Current leakage control 400Hz frequency support 1 programmable analog input Customisable alarm text (2 alarms) Customisable alarm text (8 alarms) Non-volatile memory for event storage RS485 communication (no RS232 port) Modbus-TCP communication protocol Modbus-RTU and Modbus-ASCII protocols PLC logic for inputs, outputs and internal status Neutral current measurement range: 0.050…6A or 1.2A Single, two and three phase voltage control L1-L2-L3-N NFC technology for parameter setup via smartphone or tablet IR programming port on front panel for communication with PC Expandable with rear plug-in expansion modules (see page F-5) 1 analog resistance input for oil pressure / engine temperature or fuel level control 3 analog resistance input for oil pressure, engine temperature or fuel level control DIGITAL INPUTS 8 DIGITAL OUTPUTS 10 DESCRIPTION Full featured stand alone gen-set controller UNIVERSAL SUPPLY 12 / 24 VDC DISPLAY Graphic LCD 128 x 80 pixels with backlight MEASUREMENT VOLTAGE 30 600 VAC (programmable VT ratio) CURRENT INPUT 3PH, /5A or /1A OPERATING TEMPERATURE -30 +70°C MOUNTING Panel DIMENSIONS (MM) 180 x 240
RGK800
