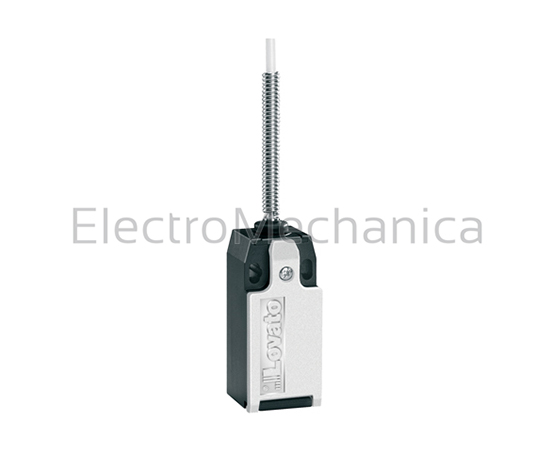

KB series limit switch The LOVATO ELECTRIC limit switches have been designed to satisfy requirements comprising quick installation, easy wiring, simple setup, modularity, sturdiness and constant reliability. The body cover is hinged at the bottom and removable. The innovative locking bayonet mechanism permits to remove and reposition the operating head in the required configuration with no tools. The auxiliary contact blocks are removable assuring remarkable wiring ease. General features: (AC1)10A – IP65 – Ui 690 VAC – M20 cable entry Replaceable actuator heads, 45 axial rotation of operating heads Direct operating operation; safety function according to IEC/EN 60947-5-1 SERIES KB series DESCRIPTION Limit switch ACTUATOR TYPE Omni-directional wobble stick CONTACT CONFIGURATION 1NO+1NC INDEX PROTECTION IP IP65 HOUSING MATERIAL Plastic body CABLE ENTRY Bottom entry (1 x M20)
KB M1 S11
