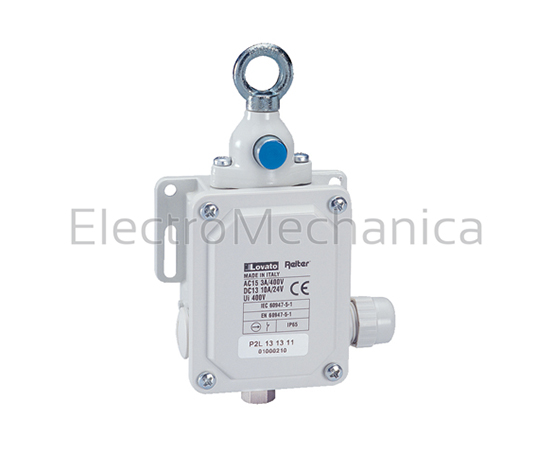

Heavy duty rope-operated limit switches with pre-tensioning facility General features: Supplied with cable gland (PG11) Latching with push button reset facility on switch Green indicator for correct pre-tensioning adjustment Latching (hand reset) limit switches ISO 13850 compliant Large field of overlap for easier regulation of pre-tensioning 2 NC contacts (when pre-tensioned) 1 opens if rope breaks the other opens when rope is pulled SERIES P2L series DESCRIPTION Rope operated limit switch ACTION Latching/hand reset OPERATING FORCE (N) 120N – 12kg CONTACT CONFIGURATION 1NO+1NO INDEX PROTECTION IP IP65 THERMAL CURRENT (AC1) 6A Ui: 400 VAC DIMENSIONS (MM) (H) 161 x (W) 100 x (D) 48.5 mm
P2L131312
